Anybody can put 4,000 on a quote.We break it and send you the number.
Out of the same truck that pours your driveway we cast four cylinders. Two get crushed at seven days and two at twenty-eight, on a calibrated machine, and you get the report. It is the only way the strength you were sold stops being an adjective.
One cylinder, and the whole argument sits on it.
The fracture drawn here is a cone and split, which is what a properly consolidated cylinder does when it fails. A cylinder that shears off at an angle or crumbles at one end usually means it was made badly, not that the concrete was weak, and that is why the technician records the fracture pattern alongside the load. A break report with no fracture type on it is half a report.
Below is what one of ours looks like. Every figure on it comes off the same batch that went into the ground, and the twenty-eight day line is the one the whole trade quotes and almost nobody measures on a residential job.
- Placement
- Driveway, 5 in slab
- Cast
- Day 0, 9:40 a.m.
- Slump at the chute
- 4.25 in
- Air content
- 6.2 %
- Concrete temperature
- 68 °F
- Cylinder diameter
- 6.00 in
- Cross-sectional area
- 28.27 in²
- Break at 7 days, max load
- 92,400 lbf
- Strength at 7 days
- 3,270 psi
- Break at 28 days, max load
- 131,600 lbf
- Strength at 28 days
- 4,655 psi
- Fracture pattern
- Cone and split
| What it is | Ours | What it does if it is wrong |
|---|---|---|
| Compressive strength, exterior | 4,500 psi | A 3,000 psi driveway is the single loudest tell of a low bid. It will hold a car. It will not hold a car and thirty five freeze-thaw cycles a winter. |
| Water to cement ratio | 0.44 max | The most load-bearing number in the trade and the one nobody publishes. Water added at the site to make it easier to pull is how a 4,500 mix leaves the truck as a 3,000 mix. |
| Entrained air | 6.0 ± 1.5% | Those bubbles are where freezing water expands into. Below four percent the paste has nowhere to go and the surface scales off in year two. |
| Slump as placed | 4 in ± 1 | Soupy concrete finishes easily and cracks readily. It is the same trade-off every time and the crew is not the one who lives with it. |
| Slab thickness, passenger | 4 in | Fine until an RV, a dump trailer or a delivery truck tracks over the apron. |
| Slab thickness, anything heavier | 5 to 6 in | An inch of concrete is cheaper than a replacement. We will tell you which one you need after we ask what parks on it. |
| Granular base | 4 to 6 in | Compacted to 95% standard Proctor and, more importantly, compacted uniformly. Most Northland driveways do not fail on strength. They fail because half the slab settled and the other half did not. |
| Reinforcement | #4 at 18 in | Half-inch bar on chairs at mid depth. Fibre mesh is a crack-control admixture and is not structural reinforcement, whatever the brochure implies. |
| Control joint depth | ≥ 1/4 slab | An inch deep on a four inch slab. Cut shallower and the slab picks its own crack somewhere else. |
| Control joint spacing | 8 to 12 ft | Panels kept near square, no longer than one and a half times their width. A long thin panel cracks across the middle every time. |
| Time to first cut | 6 to 18 hr | Early-entry saw as soon as it bears weight. Wait until the next afternoon and the concrete has already decided. |
| Cure | 7 days | Wet cure or membrane. Concrete does not dry, it reacts, and it needs the water to do it. About seventy percent of design strength is there at day seven. |
| Keep off it | 7 to 10 days | Foot traffic sooner. Vehicles at seven to ten days, anything heavy at twenty eight. |
| First winter | No de-icer | The surface has not carbonated yet. One season of rock salt on a first-winter slab does damage that no sealer undoes. |
Every figure on this page is illustrative for this preview. On a real job they come off the batch ticket, the air meter and the break report, and you get copies of all three.
You are holding three quotes and they are three numbers. Here is how to turn them into a comparison.
We would rather you asked all three of us than took our word for it. If a contractor cannot answer these at the kitchen table, that is the answer.
What strength, and how thick?
Two numbers, and they should come back without a pause. Exterior flatwork in this climate wants 4,000 to 4,500 psi, and the thickness should be a question about what parks on it rather than a default.
If the answer is "standard mix", it is a 3,000 psi mix. Nobody says "standard" about 4,500.
What is going under it, and who compacts it?
Depth of granular base, what it is compacted to, and whether that happens with a plate or a roller. This is the one that decides whether the slab is still flat in ten years, and it is invisible the day the job is finished.
The base is where a low bid finds its money, because you cannot see it from the driveway.

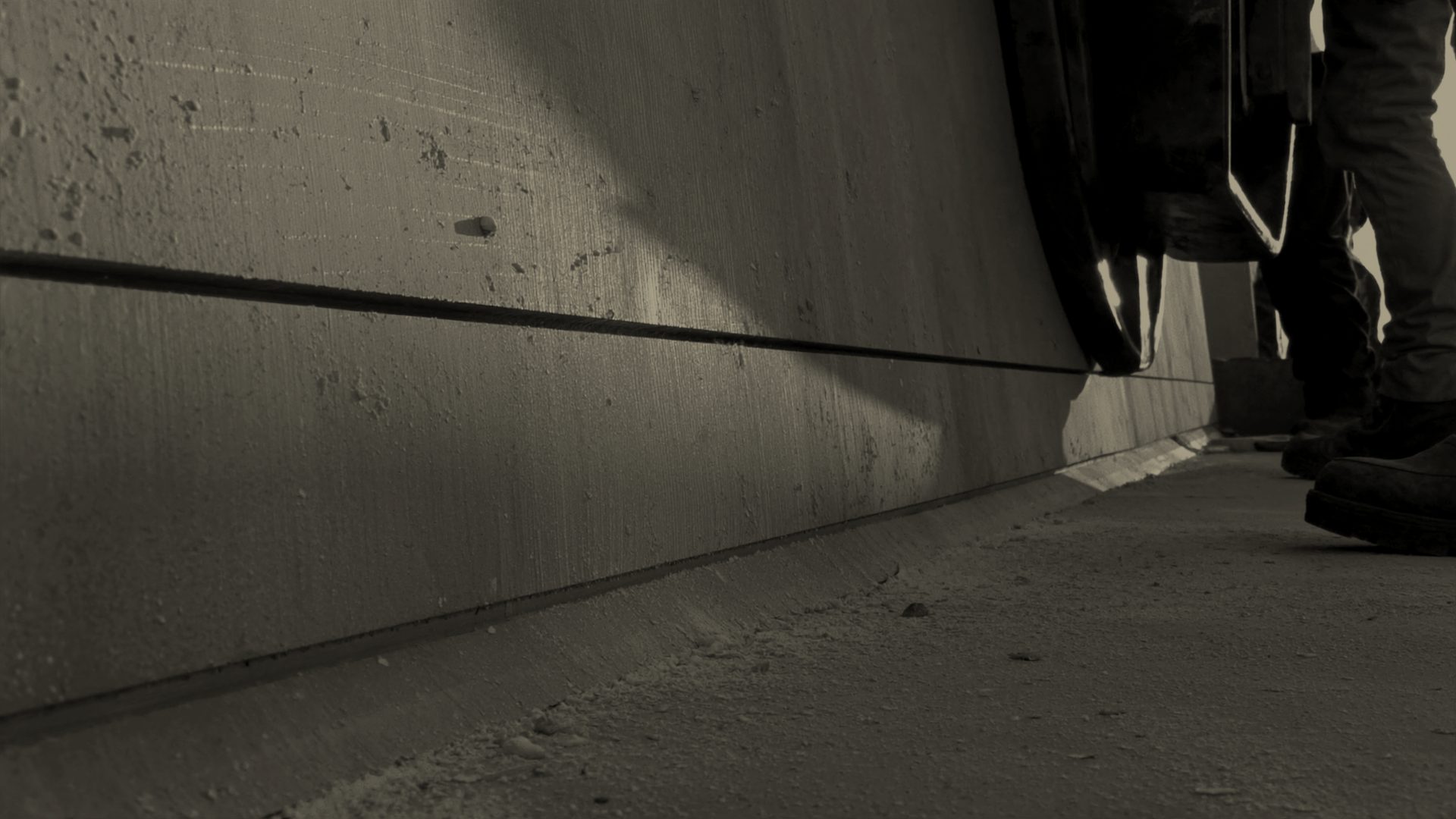

When do you cut the joints, and how deep?
Same day, early-entry saw, a quarter of the slab depth, panels near square. The answer tells you whether the crew comes back the evening of the pour or turns up whenever the next morning suits them.
Concrete cracks. The only question is whether it cracks where somebody decided or where it felt like it.
This is a freeze-thaw climate, and the calendar is part of the spec.
Kansas City runs roughly thirty five to forty freeze-thaw cycles in a year, which puts exterior flatwork here in an exposure class that most of the country never has to think about. It is also why the schedule is not infinitely flexible and why we will tell you to wait rather than pour into a bad week.
The good half
Air rising through the fifties, long cure windows, low evaporation. This is when we would like to pour your driveway and it is also when everybody else would, so it books out first.
Hot and windy
Above ninety with wind is a plastic shrinkage problem, not a comfort problem. Early starts, evaporation retarder, and sometimes we move the pour to the following week.
The second window
The best finishing weather of the year. Below forty degrees we are into blankets, heated mix and an accelerator, all of which we will quote rather than absorb quietly.
Mostly no
We will do interior slabs and repairs. We will not pour a driveway into ground that is about to freeze and then tell you in April that it was one of those things.
Bring us the other two bids.
We will read them with you and tell you what each one left out, including the times it is us. Estimates are free, they take about fifteen minutes on site, and we measure rather than pace it off.
Call (816) 555-0188
